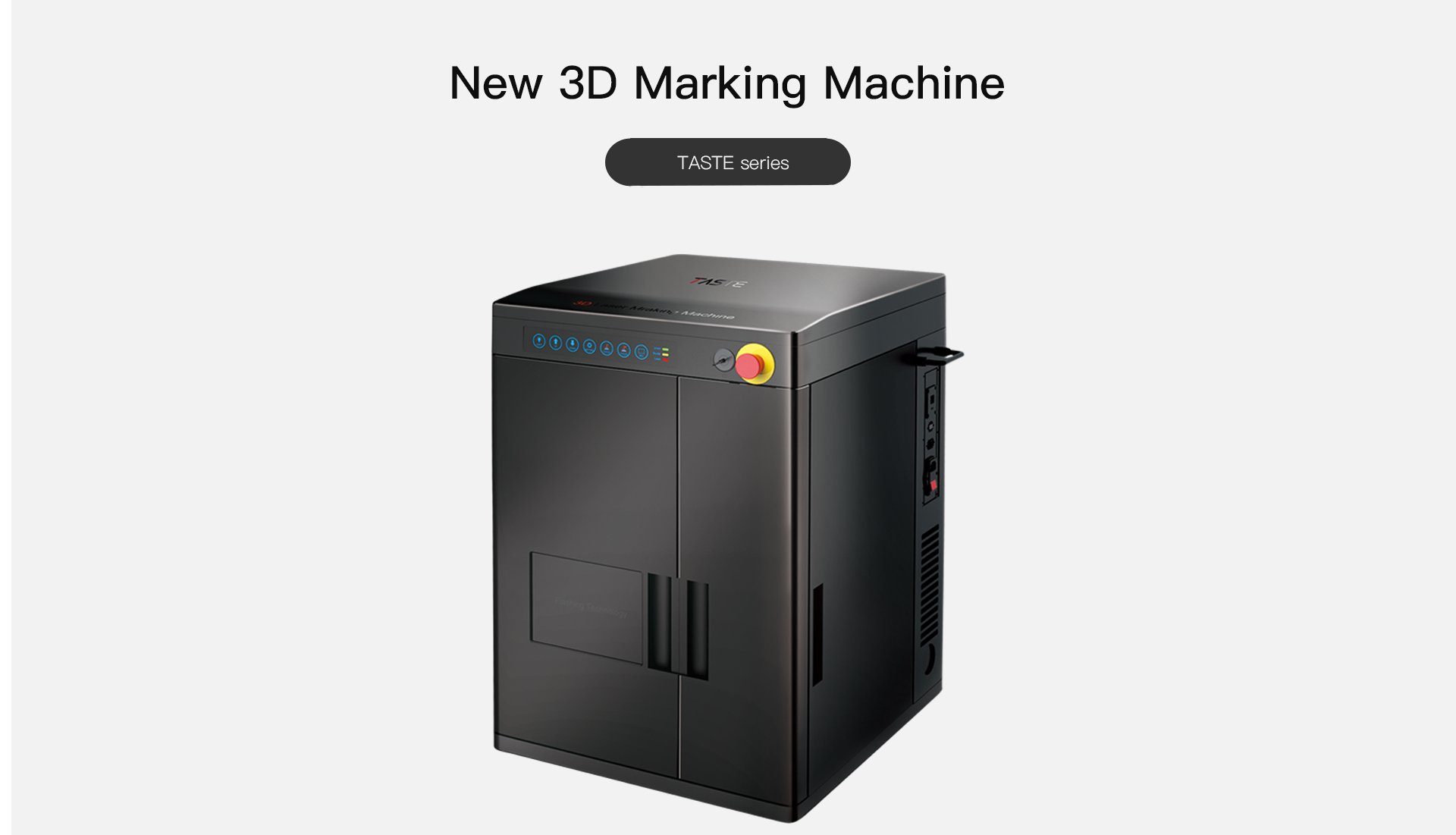

3D Laser Marking Machine
ABS + PC material, sealed mold design to prevent dust from entering in order to extend the life span of
the machine.It is a light weight design, the weight of the machine less than 50KG.
Motion control design
It adopt precise linear guide drive, with photoelectric sensor switch limit control, transmission
more efficient,more compatible, stable and durable.
Removable door design
Asymmetrical double door design,larger left door, to achieve quick device replacement. The door can be
removed quickly, which create a new pattern of expanding functions to achieve greater processing space.
European standard design
Casting mold machine body, compact structure design and safety protection design make the whole machine
more convenient to maintain, more safe and durable, it conforms to the European manufacturing standard,
with full details from design to manufacturing.
Running data monitoring functions
It is mainly made up of three functions: running data monitoring system developed based on the internet
technology platform ; data acquisition and transmission. Data analysis and display . Openthe APP software
in phone you can intuitively see the parameters of monitored equipment.
Auto focus on centre
Exclusive research, focusing control cards and algorithms equipped with high-precision CMOS sensor.
High-precision one-button auto focus function can be achieved. With security, process reminder, quick use,
simple maintenance, and so on.
Built-film button,it can accurately perform the functions of red light positioning, servo motor
lifting and horizontal movment, auto focusing, LED lighting functions, etc.
24V low voltage
It adopts low voltage DC24V to control the equipment start and stop, meet European standard of low voltage start-up requirement.
Compatible input voltage is AC 85-265V, frequency is 50HZ / 60HZ.
It adops inductiive shut-off technology, if the operator open the door when the laser is working, the shutter will be immediately
shut down to effectively reduce accidental injury by fault operation.
Professional protective window to watch the work of the laser at any time.
Import 3D model design and set parameter, then it can achieve precise control of 3D marking and relief engraving.
3-axis dynamic focusing system
Equipped with 3-axis optical system, through move z axis mirror forth and back，to achieve the change of focal distance variably.
A wealth of optional accessories, according to user scenarios for fast fitting.Increase the rotating head,which can achieve 360° marking.
It achieves multi-station marking by disk rotation.
